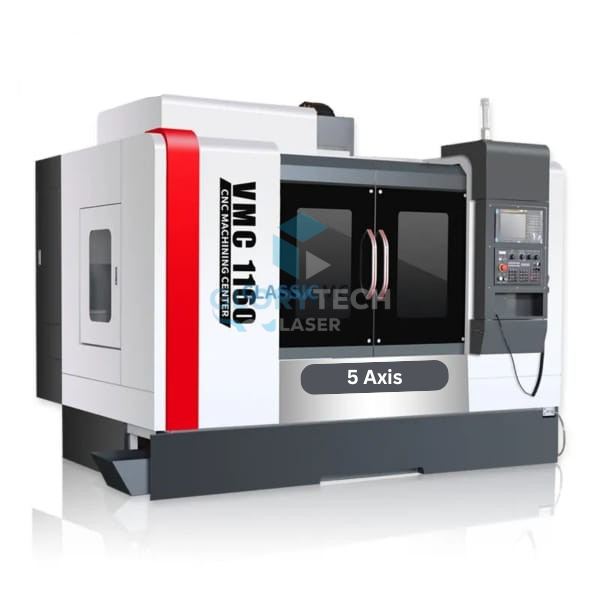

🧭 Axes in a 5-Axis CNC Machine

🔹 Linear Axes

• X-axis: Left–right movement

• Y-axis: Front–back movement

• Z-axis: Up–down movement

🔹 Rotational Axes

• A-axis: Rotation around the X-axis

• B-axis: Rotation around the Y-axis

• C-axis: Rotation around the Z-axis

A typical 5-axis machine uses any two of the three rotational axes (A, B, or C) in addition to X, Y, and Z.

🛠️ Main Components of a 5-Axis CNC Milling Machine

🧱 1. Machine Frame & Structure

• Made from cast iron or polymer concrete for rigidity and vibration damping.

• High structural stability ensures precision during high-speed machining.

🔄 2. Rotary Table / Tilting Head

• Enables rotation of the workpiece or spindle.

• Can be table-mounted (tilting table) or spindle-mounted (swivel head).

⚙️ 3. Spindle System

• High-speed motorized spindle (often 10,000–30,000 RPM).

• Supports various cutting tools such as end mills, ball mills, and face mills.

🧠 4. CNC Controller

• Advanced controllers (Siemens, FANUC, Heidenhain, etc.).

• Handles complex tool paths, kinematics, collision detection, and interpolation.

🔧 5. Tool Changer & Magazine

• Automatic Tool Changer (ATC) with capacity ranging from 20 to 100+ tools.

• Reduces downtime and supports multi-operation machining.

🧊 6. Cooling & Lubrication System

• Flood coolant, mist cooling, or through-spindle coolant.

• Maintains tool life and surface quality.

⚙️ How a 5-Axis CNC Milling Machine Works

1. CAD Design
   A 3D model is created using CAD software.

2. CAM Programming
   CAM software generates complex 5-axis tool paths, defining tool orientation and movement.

3. Post-Processing
   Tool paths are converted into machine-specific G-code.

4. Simultaneous Machining
   All five axes move together, allowing the cutting tool to maintain the optimal angle to the surface.

5. Finished Component
   Complex parts are produced with high accuracy, often in a single setup.

🔁 Types of 5-Axis CNC Machines

🔹 1. Table-Table Configuration

• Both rotary axes are on the table.

• High rigidity and accuracy.

• Limited workpiece size.

🔹 2. Head-Table Configuration

• One rotary axis on the head, one on the table.

• Most common and versatile design.

🔹 3. Head-Head Configuration

• Both rotary axes on the spindle head.

• Suitable for large or heavy workpieces.

📈 Advantages of 5-Axis CNC Milling

🎯 High Precision & Accuracy

• Reduced repositioning errors.

• Better surface finish and tighter tolerances.

⏱️ Reduced Setup Time

• Complex parts machined in one setup.

• Less fixturing and alignment work.

🧩 Ability to Machine Complex Geometry

• Undercuts, deep cavities, curved and organic surfaces.

• Ideal for free-form and sculpted parts.

🛠️ Improved Tool Life

• Optimal cutting angles reduce tool wear.

• Shorter tools can be used, minimizing vibration.

🚀 Higher Productivity

• Fewer setups, faster cycle times, less manual intervention.

🏭 Applications of 5-Axis CNC Milling Machines

✈️ Aerospace

• Turbine blades, impellers, structural components.

🚗 Automotive

• Engine parts, molds, dies, performance components.

🏥 Medical

• Orthopedic implants, dental components, surgical tools.

⚙️ Mold & Die Industry

• Injection molds, forging dies, complex cavities.

🛰️ Defense & Energy

• Precision housings, aerospace-grade components.
