🔦 Principle of Fiber Laser Cutting

Fiber laser cutting works by concentrating a high-power laser beam (typically 1064 nm wavelength) onto a very small focal spot on the metal surface.

1. The laser energy rapidly heats the material to melting or vaporization temperature.

2. An assist gas (oxygen, nitrogen, or air) blows away molten material.

3. A clean, narrow kerf is formed with minimal heat-affected zone (HAZ).

For pipe cutting, the system synchronizes linear motion (X, Y, Z) with rotary motion (A-axis or chuck rotation) to maintain precise cutting around the tube circumference.

🛠️ Main Components of a Fiber Laser Pipe Cutting Machine

🔹 1. Fiber Laser Source

• Power range typically from 1 kW to 12 kW or higher.

• High electro-optical efficiency and long service life (100,000+ hours).

• Stable beam quality for fine cutting and thick-wall pipes.

🔹 2. Laser Cutting Head

• Auto-focusing cutting head with capacitive height sensing.

• Maintains constant focal distance even on uneven or rotating pipes.

• Supports bevel cutting (optional).

🔹 3. Pipe Chuck System

• Pneumatic or servo-driven chucks.

• Automatically center and clamp the pipe.

• May include double-chuck or triple-chuck designs for improved stability and reduced tail waste.

🔹 4. CNC Control System

• Specialized tube-cutting CNC software.

• Supports nesting, collision avoidance, and automatic centering.

• Accepts CAD files (DXF, STEP, etc.).

🔹 5. Machine Bed & Frame

• Heavy-duty welded or cast structure.

• Designed to absorb vibration and maintain cutting accuracy.

🔹 6. Loading & Unloading System (Optional)

• Automatic feeding for mass production.

• Servo-controlled rollers or chain conveyors.

🔹 7. Assist Gas System

• Oxygen for carbon steel.

• Nitrogen or air for stainless steel and aluminum.

• Ensures smooth, oxide-free cuts.

⚙️ How a Fiber Laser Pipe Cutting Machine Works

1. Pipe Loading
   The pipe is loaded manually or automatically into the chuck system.

2. Automatic Centering & Clamping
   Chucks align the pipe precisely with the rotary axis.

3. Program Import
   CAD/CAM software defines cutting paths, holes, slots, and angles.

4. Laser Cutting Process

   • The pipe rotates while the laser head moves along its length.

   • Multi-axis coordination enables complex profiles and contours.

5. Finished Pipe Output
   Clean, burr-free cuts are produced with minimal post-processing.

🔁 Types of Fiber Laser Pipe Cutting Machines

🔹 1. Standard Tube Cutting Machine

• Suitable for round and square pipes.

• Manual or semi-automatic loading.

🔹 2. Heavy-Duty Pipe Cutting Machine

• Designed for large-diameter and thick-wall pipes.

• High laser power and reinforced chuck system.

🔹 3. Automatic Pipe Cutting Machine

• Fully automated loading and unloading.

• Ideal for high-volume production.

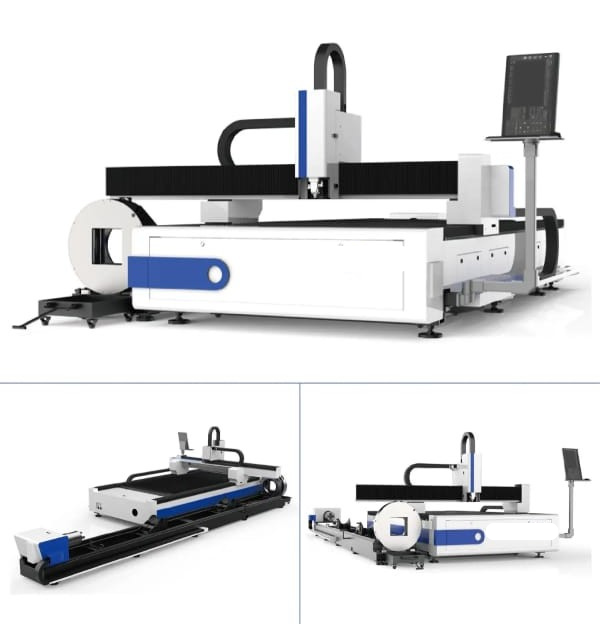

🔹 4. Combined Sheet & Pipe Laser Cutting Machine

• Cuts both metal sheets and pipes.

• Cost-effective for small and medium workshops.

📐 Supported Pipe Shapes & Sizes

• Round pipes

• Square and rectangular tubes

• Oval tubes

• Angle steel, channel steel (with special fixtures)

• Custom profiles

Diameter range typically from 10 mm to 350 mm or more, depending on machine configuration.

📈 Advantages of Fiber Laser Pipe Cutting Machines

⚡ High Cutting Speed

• Significantly faster than plasma or saw cutting.

🎯 Exceptional Precision

• Accuracy up to ±0.05 mm.

• Perfect alignment for welding and assembly.

🧩 Complex Shape Capability

• Holes, slots, bevels, notches, and intersecting cuts.

• Ideal for space-frame and structural designs.

🔥 Minimal Heat-Affected Zone

• Reduces material deformation.

• Preserves mechanical properties.

🛠️ Low Operating Cost

• No tool wear.

• Low energy consumption compared to CO₂ lasers.

🔄 High Automation

• Reduces labor dependency.

• Consistent quality across batches.

🏭 Industrial Applications

🚗 Automotive Industry

• Exhaust pipes, chassis structures, roll cages.

🏗️ Construction & Steel Fabrication

• Structural pipes, trusses, handrails.

🚲 Furniture & Fitness Equipment

• Metal frames, tubular components.

⚙️ Machinery Manufacturing

• Hydraulic pipes, support frames, enclosures.

🚢 Shipbuilding & Energy

• High-strength pipe components and assemblies.

🧩 Materials Commonly Cut

• Carbon steel

• Stainless steel

• Aluminum and aluminum alloys

• Copper and brass

• Galvanized steel

⚠️ Key Factors When Choosing a Fiber Laser Pipe Cutting Machine

🔹 Laser Power: Match power to material thickness and production volume.
🔹 Pipe Size Range: Ensure compatibility with your tube dimensions.
🔹 Chuck Type: Double or triple chuck systems improve precision and reduce waste.
🔹 Automation Level: Manual vs fully automatic depending on throughput needs.
🔹 Software Capability: Advanced nesting and simulation reduce errors and scrap.
🔹 After-Sales Support: Training, spare parts, and service availability are critical.
