🧠 Basic Working Principle

The swing arm die cutting machine operates on hydraulic pressure:

1. A steel rule die is placed on the material.

2. The swing arm positions the cutting head directly over the die.

3. When activated, the hydraulic system drives the cutting head downward.

4. High pressure forces the die through the material, cutting it cleanly.

5. The head retracts automatically, ready for the next cycle.

This process ensures consistent cutting depth and shape accuracy with minimal material distortion.

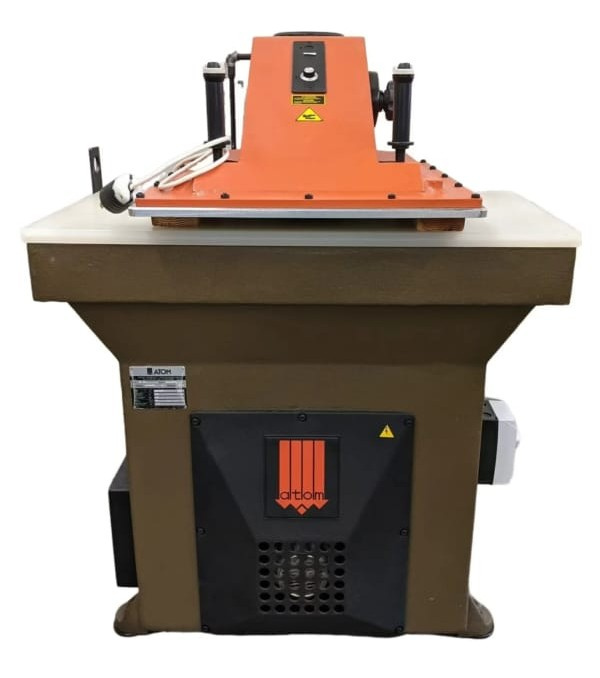

🛠️ Main Components of a Swing Arm Die Cutting Machine

🔹 1. Swing Arm (Cutting Head)

• Moves horizontally over the worktable.

• Provides wide cutting coverage without moving the material.

• Ensures even pressure distribution across the die.

🔹 2. Hydraulic System

• Includes hydraulic pump, oil tank, valves, and cylinders.

• Generates high cutting force (typically 10–30 tons).

• Provides smooth, stable, and adjustable pressure.

🔹 3. Cutting Plate (Worktable)

• Usually made from high-density plastic (PP or nylon).

• Protects the die edge and ensures clean cuts.

• Replaceable after wear.

🔹 4. Control Panel

• Simple push-button or foot-pedal operation.

• Allows control of cutting force and stroke.

• Includes emergency stop for safety.

🔹 5. Machine Frame

• Heavy-duty steel or cast iron structure.

• Absorbs vibration and maintains machine stability.

⚙️ How a Swing Arm Die Cutting Machine Works

1. Material Placement
   Sheets or rolls of material are placed flat on the cutting plate.

2. Die Positioning
   The cutting die is placed on top of the material.

3. Arm Positioning
   The operator swings the arm to align the cutting head over the die.

4. Cutting Action
   Hydraulic pressure drives the cutting head downward to cut the material.

5. Return Stroke
   The head automatically returns to its original position.

🔁 Types of Swing Arm Die Cutting Machines

🔹 1. Manual Swing Arm Die Cutting Machine

• Basic hydraulic operation.

• Suitable for small workshops and low production volume.

🔹 2. Semi-Automatic Swing Arm Die Cutting Machine

• Faster operation with automatic return.

• Common in medium-scale production.

🔹 3. Traveling Head Swing Arm Machine

• Enhanced version with greater cutting area.

• Suitable for larger dies and sheets.

📈 Advantages of Swing Arm Die Cutting Machines

🎯 High Cutting Accuracy

• Uniform pressure ensures clean and precise edges.

⚡ Efficient Operation

• Fast cutting cycles increase productivity.

🧩 Versatile Material Compatibility

• Can cut leather, rubber, foam, textiles, and plastics.

🔄 Easy Die Change

• Simple operation allows quick switching between shapes.

🛡️ Operator Safety

• Two-hand control or safety guards reduce accident risk.

💰 Cost-Effective

• Lower investment compared to fully automated cutting systems.

🏭 Industrial Applications

👟 Footwear Industry

• Cutting shoe uppers, soles, insoles, and linings.

👜 Leather Goods

• Bags, wallets, belts, straps.

🚗 Automotive Interiors

• Seat covers, insulation materials, carpets.

📦 Packaging Industry

• Foam inserts, cardboard, protective packaging.

⚙️ Industrial Use

• Gaskets, seals, rubber components.

🧩 Materials Commonly Cut

• Natural and synthetic leather

• Rubber and EVA foam

• PU, PVC sheets

• Felt and textiles

• Cardboard and gasket materials

⚠️ Key Factors to Consider When Choosing a Swing Arm Die Cutting Machine

🔹 Cutting Force (Ton Capacity)
🔹 Cutting Area Size
🔹 Type and Thickness of Material
🔹 Hydraulic System Quality
🔹 Safety Features
🔹 Maintenance and Spare Parts Availability
