🧠 Working Principle of High Frequency Embossing

High Frequency embossing works on the principle of dielectric heating:

1. High-frequency electrical energy is generated by an RF generator.

2. The electromagnetic field causes polar molecules inside the material (such as PVC) to vibrate rapidly.

3. This molecular friction produces internal heat within the material.

4. Under applied mechanical pressure, the softened material conforms to the embossing die.

5. Once the RF power is stopped, the material cools and retains the embossed shape.

This internal heating method ensures uniform, fast, and precise embossing.

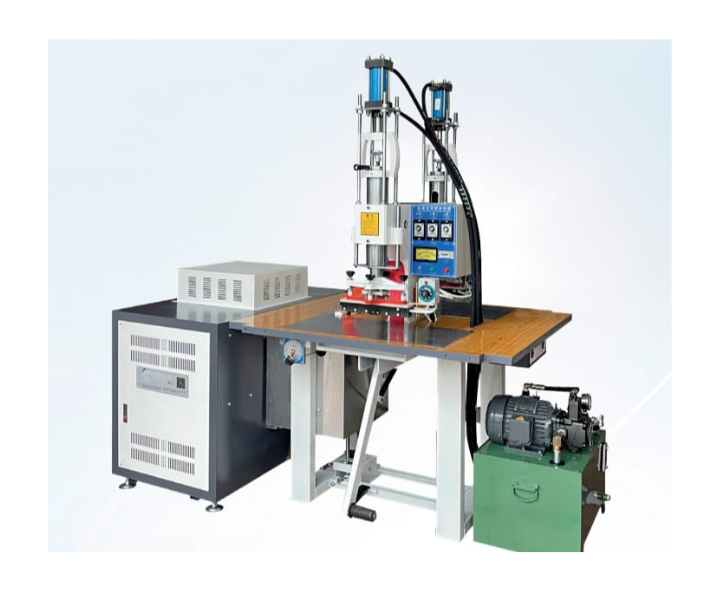

🛠️ Main Components of a High Frequency Embossing Machine

🔹 1. High Frequency Generator

• Generates RF power (commonly 3 kW to 15 kW or higher).

• Stable output ensures consistent embossing quality.

• Equipped with overload and spark protection.

🔹 2. Embossing Die (Mold)

• Made from aluminum, brass, or magnesium.

• Contains engraved patterns, logos, or textures.

• Determines emboss depth and design clarity.

🔹 3. Upper & Lower Press Plates

• Apply uniform pressure on the material.

• Precision-aligned to ensure even embossing.

🔹 4. Hydraulic or Pneumatic Press System

• Provides controlled pressure during embossing.

• Adjustable based on material thickness.

🔹 5. Control Panel

• Digital or analog controls.

• Adjusts RF power, embossing time, pressure, and cooling cycle.

🔹 6. Cooling System

• Air or water cooling for generator and electrodes.

• Maintains system stability and extends machine life.

⚙️ How a High Frequency Embossing Machine Works

1. Material Placement
   Thermoplastic sheet or component is placed on the lower platen.

2. Die Positioning
   Embossing die aligns with the target area.

3. Pressing & RF Activation
   The press closes, applying pressure and RF energy simultaneously.

4. Emboss Formation
   Material softens internally and forms the embossed pattern.

5. Cooling & Release
   RF power stops, material cools, and the press opens.

🔁 Types of High Frequency Embossing Machines

🔹 1. Single-Head HF Embossing Machine

• One working station.

• Suitable for small to medium production volumes.

🔹 2. Double-Head HF Embossing Machine

• Two working stations for higher productivity.

• One station loads while the other embosses.

🔹 3. Automatic HF Embossing Machine

• Automated feeding and ejection.

• Ideal for mass production.

🔹 4. HF Embossing & Welding Combination Machine

• Performs embossing and sealing simultaneously.

• Common in inflatable and packaging products.

📈 Advantages of High Frequency Embossing Machines

🎯 Sharp & Clear Embossing

• Produces deep, crisp, and permanent emboss patterns.

⚡ Fast Processing

• Heating occurs internally, reducing cycle time.

🔥 Uniform Heating

• No surface burning or uneven heating.

🧩 Strong Bonding

• Suitable for embossing and welding simultaneously.

🔄 Consistent Quality

• High repeatability with minimal material distortion.

🛠️ Low Material Waste

• Precise energy control reduces rejects.

🏭 Industrial Applications

👟 Footwear Industry

• Shoe uppers, insoles, logos, branding elements.

👜 Leather Goods & Accessories

• Bags, wallets, belts, artificial leather products.

🚗 Automotive Interiors

• Door panels, seat covers, floor mats.

📦 Packaging Industry

• Blister packs, PVC covers, molded packaging.

🏥 Medical Products

• Blood bags, IV pouches, medical packaging.

🎨 Promotional & Decorative Products

• Logos, labels, textured designs.

🧩 Materials Suitable for HF Embossing

• PVC (Polyvinyl Chloride)

• PU (Polyurethane)

• TPU

• EVA (with PVC content)

• Synthetic leather

• Thermoplastic films and sheets

⚠️ Note: HF embossing is not suitable for pure non-polar materials such as PE, PP, or silicone without special additives.

⚠️ Key Factors to Consider When Selecting a High Frequency Embossing Machine

🔹 Generator Power (kW)
🔹 Embossing Area Size
🔹 Material Type & Thickness
🔹 Die Quality and Cooling Design
🔹 Safety Features (spark protection, shielding)
🔹 Compliance with RF regulations
