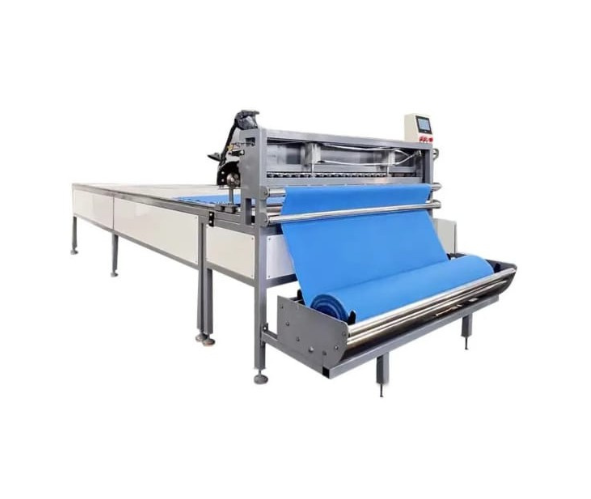

🧠 Working Principle of a Fabric Spreading Machine

The fabric spreading machine works by unrolling fabric from a roll and laying it flat in layers across the cutting table with controlled tension and alignment.

1. Fabric roll is mounted on the machine cradle.

2. The machine travels along the cutting table rails.

3. Fabric is unrolled and spread evenly without stretching.

4. At the end of each lay, fabric is cut or folded automatically.

5. The process repeats until the required number of layers is achieved.

Precise speed and tension control ensure smooth, wrinkle-free spreading.

🛠️ Main Components of a Fabric Spreading Machine

🔹 1. Fabric Roll Holder / Cradle

• Supports single or multiple fabric rolls.

• Adjustable for different roll diameters and weights.

🔹 2. Drive System

• Electric motor with variable speed control.

• Enables smooth forward and reverse movement.

🔹 3. Spreading Table & Rails

• Long cutting tables with guiding rails.

• Ensures straight and uniform fabric lay.

🔹 4. Edge Alignment System

• Optical or mechanical edge sensors.

• Maintains accurate fabric alignment.

🔹 5. Tension Control System

• Prevents fabric stretching or sagging.

• Critical for knitted and elastic fabrics.

🔹 6. Cutting Device

• Manual, semi-automatic, or automatic end cutters.

• Cuts fabric at the end of each spread.

🔹 7. Control Panel

• Digital interface for speed, layer count, and direction control.

⚙️ How a Fabric Spreading Machine Works

1. Fabric Loading
   Fabric roll is loaded onto the cradle.

2. Parameter Setting
   Speed, layer length, and number of plies are set.

3. Spreading Operation
   Machine moves along the table, laying fabric smoothly.

4. Edge Correction
   Sensors adjust alignment automatically.

5. End Cutting / Folding
   Fabric is cut or folded at the end of the lay.

6. Layer Completion
   Process repeats until required layers are achieved.

🔁 Types of Fabric Spreading Machines

🔹 1. Manual Fabric Spreading Machine

• Operator-driven movement.

• Suitable for small workshops.

🔹 2. Semi-Automatic Fabric Spreading Machine

• Motorized movement with manual controls.

• Common in medium-scale production.

🔹 3. Automatic Fabric Spreading Machine

• Fully automated spreading and cutting.

• Ideal for large garment factories.

🔹 4. Trolley Type Fabric Spreader

• Mounted on rails.

• Used for long cutting tables.

📈 Advantages of Fabric Spreading Machines

🎯 Improved Cutting Accuracy

• Uniform layers ensure precise cutting.

⚡ Increased Productivity

• Faster than manual spreading.

🧩 Fabric Saving

• Minimizes wastage and defects.

🔄 Consistent Layer Quality

• Eliminates wrinkles, tension variation, and skewing.

🛡️ Reduced Labor Fatigue

• Ergonomic and safer operation.

💡 Suitable for Various Fabrics

• Works with woven, knitted, and non-woven fabrics.

🏭 Industrial Applications

👕 Garment Manufacturing

• Shirts, trousers, jackets, dresses, uniforms.

👟 Footwear & Accessories

• Fabric cutting for shoe uppers and linings.

🛋️ Upholstery Industry

• Sofa covers, cushions, curtains.

🧵 Technical Textiles

• Industrial and medical textile products.

🧩 Types of Fabrics Suitable for Spreading

• Cotton

• Polyester

• Denim

• Knit fabrics

• Lycra and elastic fabrics

• Non-woven materials

⚠️ Key Factors to Consider When Selecting a Fabric Spreading Machine

🔹 Fabric Width & Roll Weight Capacity
🔹 Maximum Spreading Length
🔹 Level of Automation
🔹 Tension & Edge Control Accuracy
🔹 Compatibility with Fabric Types
🔹 Maintenance and Service Support
