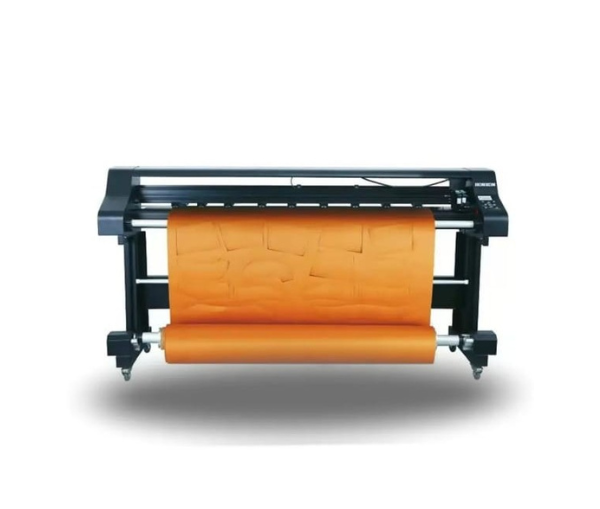

🧠 Working Principle of an Inkjet Cutting Plotter

The inkjet cutting plotter operates on a print-and-cut principle:

1. A digital design is created in graphic or CAD software.

2. The inkjet system prints the design, reference marks, or outlines onto the material.

3. Optical sensors detect printed registration marks.

4. The cutting head follows the exact printed contours.

5. The material is cut precisely along the intended paths.

This ensures perfect alignment between printing and cutting.

🛠️ Main Components of an Inkjet Cutting Plotter

🔹 1. Inkjet Printing System

• High-resolution inkjet print heads.

• Uses dye-based, pigment, or eco-solvent inks.

• Produces sharp text, graphics, and reference lines.

🔹 2. Cutting Head / Plotter Knife

• Precision blade or drag knife.

• Adjustable cutting force and depth.

• Suitable for thin to medium-thickness materials.

🔹 3. Optical Registration Sensor

• Detects printed alignment marks.

• Ensures accurate contour cutting.

🔹 4. Media Feeding System

• Roll-fed or flatbed configuration.

• Maintains smooth and stable material movement.

🔹 5. Drive & Motion System

• Servo motors or stepper motors.

• Ensures smooth, accurate X-Y movement.

🔹 6. Control Software

• Integrates printing and cutting operations.

• Supports common formats such as AI, DXF, PLT, PDF.

• Allows scaling, nesting, and contour adjustment.

🔹 7. Machine Frame

• Rigid metal structure.

• Reduces vibration for better accuracy.

⚙️ How an Inkjet Cutting Plotter Works

1. Design Preparation
   Artwork or pattern is created using design software.

2. Material Loading
   Paper, vinyl, fabric, or film is loaded into the plotter.

3. Inkjet Printing
   Machine prints graphics, outlines, or marks.

4. Registration Detection
   Optical sensors read printed registration points.

5. Cutting Operation
   Plotter blade cuts along printed contours.

6. Finished Output
   Printed and cut material is ready for use.

🔁 Types of Inkjet Cutting Plotters

🔹 1. Desktop Inkjet Cutting Plotter

• Compact size.

• Used for small-scale design studios and sampling.

🔹 2. Wide-Format Inkjet Cutting Plotter

• Handles large rolls and sheets.

• Common in garment and signage industries.

🔹 3. Flatbed Inkjet Cutting Plotter

• Ideal for rigid or thick materials.

• Used in packaging and prototype development.

🔹 4. Roll-to-Roll Inkjet Plotter

• Continuous printing and cutting.

• Suitable for mass production.

📈 Advantages of Inkjet Cutting Plotters

🎯 High Accuracy

• Precise alignment between printed image and cut path.

⚡ Efficient Workflow

• Combines printing and cutting in one process.

🧩 Design Flexibility

• Easy modification of designs without physical templates.

🔄 Reduced Material Waste

• Accurate cutting minimizes errors and scrap.

🛡️ User-Friendly Operation

• Minimal manual intervention.

💡 Ideal for Prototyping & Customization

• Perfect for short runs and personalized products.

🏭 Industrial Applications

👕 Garment & Fashion Industry

• Pattern plotting, sample cutting, marker printing.

👟 Footwear Industry

• Shoe templates, design marking, pattern cutting.

🪧 Signage & Graphics

• Vinyl stickers, decals, banners.

📦 Packaging Industry

• Box prototypes, labels, folding cartons.

🧵 Textile & Craft Industry

• Appliqué patterns, fabric shapes.

🧩 Materials Suitable for Inkjet Cutting Plotters

• Paper and cardboard

• Vinyl and PVC films

• Heat transfer films

• Fabric and non-woven textiles

• Thin leather and PU sheets

• Sticker and label materials
