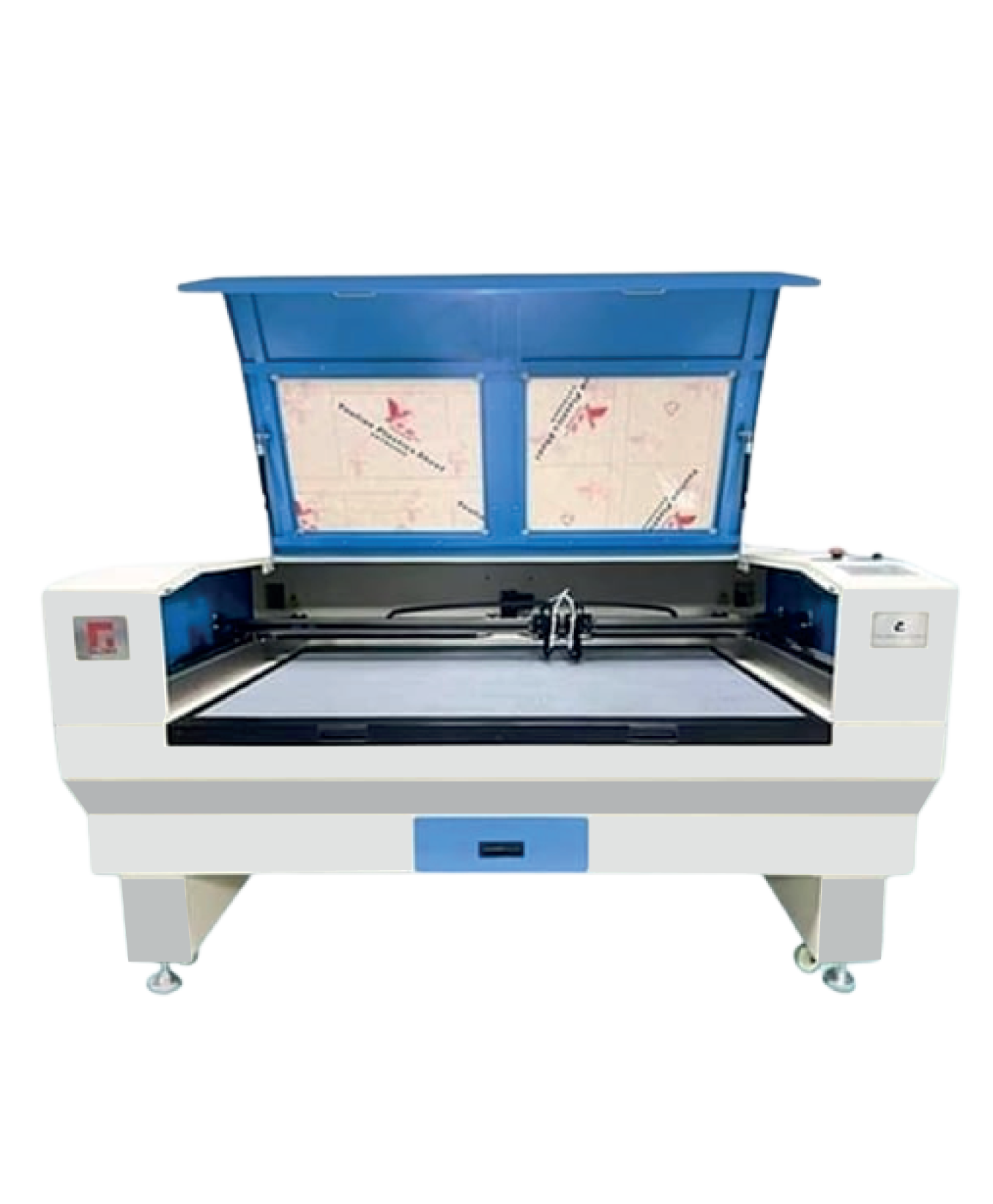

1. What Is a CCD Camera?

A CCD (Charge-Coupled Device) camera is an image sensor that converts light into electronic signals. It captures high-resolution images with excellent color accuracy and low noise, making it ideal for precision vision systems.

Key characteristics of CCD cameras:

• High image clarity

• Accurate color reproduction

• Low distortion

• Stable performance in industrial environments

When integrated with a laser machine, the CCD camera acts as the machine’s “eye.”

2. Working Principle

The CCD camera laser machine works through a vision-guided laser processing system, following these steps:

1. Image Capture
   The CCD camera captures an image of the workpiece placed on the laser bed.

2. Image Processing
   The machine’s software analyzes the image to detect:

   • Printed graphics

   • Edges and contours

   • Registration or fiducial marks

3. Automatic Positioning
   Based on the detected features, the system automatically adjusts the laser path, correcting:

   • Material placement errors

   • Rotation or skew

   • Size variations

4. Laser Operation
   The laser executes cutting, engraving, or marking precisely along the recognized pattern.

5. Real-Time Feedback (Optional)
   Some systems continuously monitor the process to ensure accuracy during operation.

3. Main Components

3.1 Laser Source

The laser type depends on the application:

• CO₂ laser – non-metal materials (acrylic, wood, leather, fabric)

• Fiber laser – metals (steel, aluminum, brass)

• UV laser – micro-processing and electronics

3.2 CCD Camera System

Includes:

• High-resolution CCD camera

• Industrial lens

• LED or coaxial lighting

• Image processing module

3.3 Motion Control System

• Servo motors or stepper motors

• Linear guides and belts

• High-precision control boards

3.4 Control Software

• Vision recognition algorithms

• CAD/CAM integration

• Automatic offset correction

• Real-time monitoring

4. Types of CCD Camera Laser Machines

1. CCD Laser Cutting Machine
   Used for contour cutting printed materials such as stickers, labels, and textiles.

2. CCD Laser Engraving Machine
   Enables precise engraving aligned with printed graphics or pre-existing designs.

3. CCD Laser Marking Machine
   Common in electronics and packaging for marking QR codes, serial numbers, and logos.

5. Applications

• Advertising industry – acrylic letters, signboards

• Textile and garment – logo cutting, pattern alignment

• Electronics – PCB marking, flexible circuits

• Packaging – label cutting, carton marking

• Automotive – component identification

• Medical devices – micro-marking and precision cutting

6. Advantages

• High precision and repeatability

• Automatic alignment reduces human error

• Increased production efficiency

• Ability to process irregular or pre-printed materials

• Reduced material waste

• Supports mass production and customization

7. Limitations

• Higher initial cost compared to standard laser machines

• Requires proper calibration of the camera system

• Performance depends on lighting conditions and image quality

• More complex software setup

8. Maintenance and Calibration

• Regular cleaning of camera lens and laser optics

• Periodic camera calibration for positional accuracy

• Software updates for vision algorithms

• Alignment checks between camera and laser head

9. Future Developments

• AI-based vision recognition

• Faster image processing with machine learning

• Integration with Industry 4.0 systems

• Higher-resolution cameras for micro-fabrication

10. Conclusion

A CCD camera laser machine significantly enhances laser processing accuracy by combining machine vision technology with laser automation. Its ability to recognize patterns, auto-align materials, and correct positioning errors makes it indispensable in modern manufacturing environments that demand precision, efficiency, and consistency.
